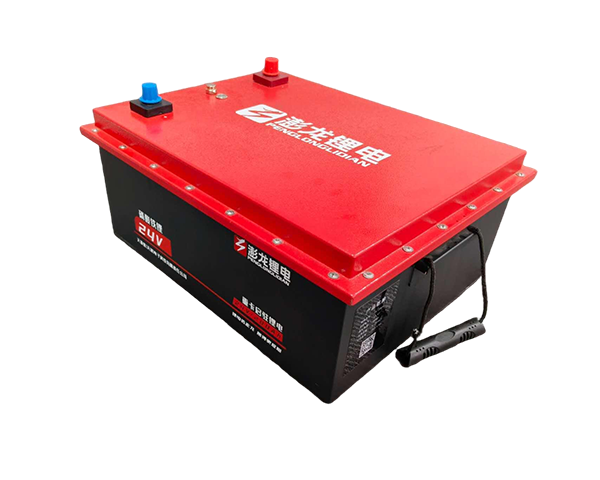

PL-2401 Heavy-Duty Truck Start-Stop Battery – 200Ah, 5.12kWh, 4000+ Cycles

Parameter	Technical Specifications
Rated Capacity	200Ah
Battery Energy	5.12 kWh
Operating Voltage Range	24.4 V – 29.2 V
Maximum Charging Voltage	29.2 V
Maximum Starting Current	2400 A
Maximum Continuous Charging Current	200 A
Maximum Continuous Discharging Current	200 A
Operating Temperature Range	–40 °C to +60 °C
Cycle Life	4000+ cycles
Communication Method	4G / GPS
Weight	50 kg
Ingress Protection Rating	IP67
Dimensions (L × W × H)	492 mm × 382 mm × 200 mm
