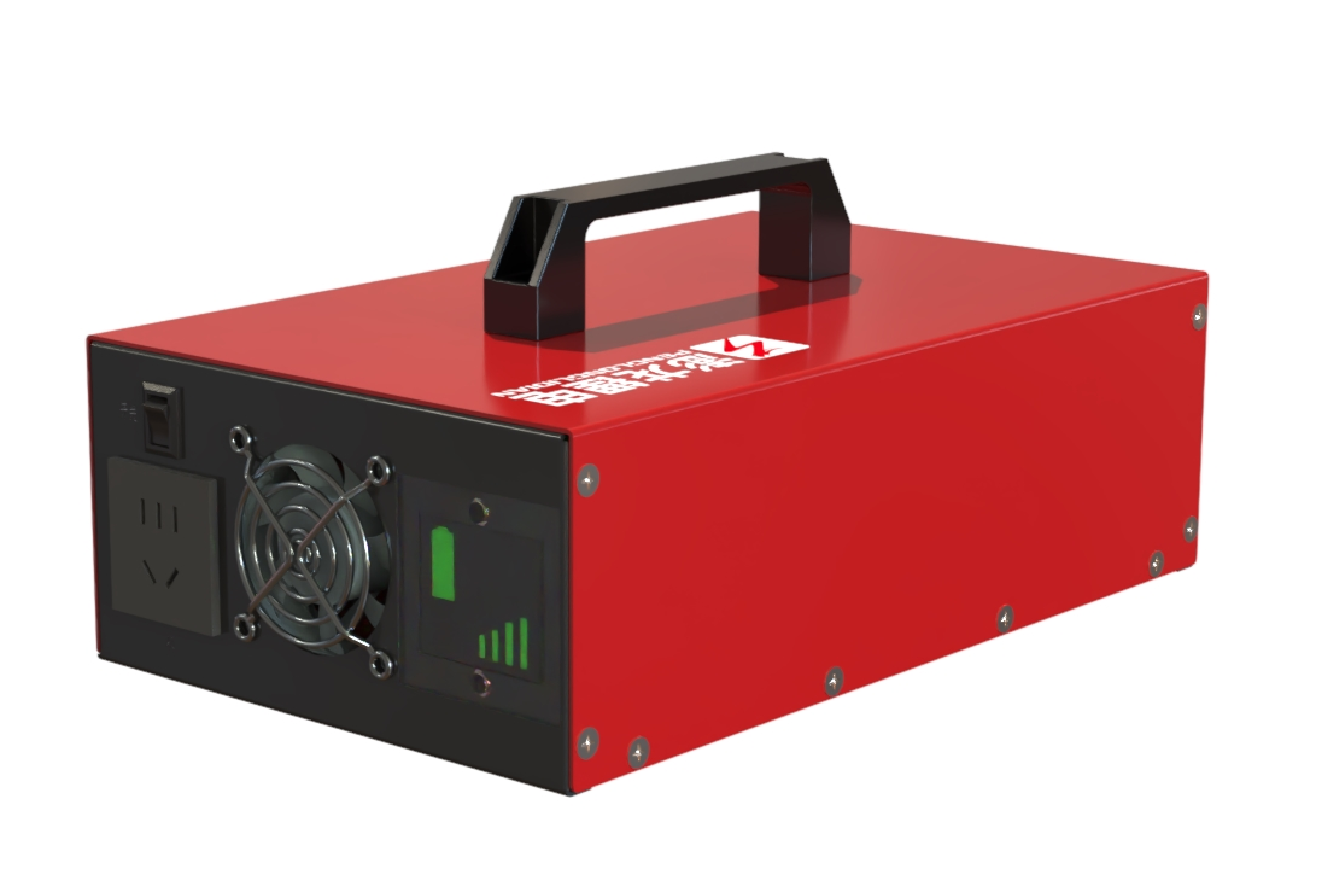

PL-ES-24-2000 Portable Inverter

Parameter	Technical Specifications
Rated Power	2000W
Peak Power	4000W (Short Duration)
Input Voltage	24VDC
Output Voltage	220VAC ±5%
USB Port	5V 2.4A
Output Frequency	50Hz ±0.5 / 60Hz ±0.5
Output Waveform	Pure Sine Wave
Soft Start	Yes
Total Harmonic Distortion (THD)	THD < 3%
Efficiency	Max. 94%
DC Input Range	20-31V
Under-voltage Alarm	21V ±0.5V
Under-voltage Protection	20V ±0.5V
Under-voltage Recovery	24V ±0.5V
Over-voltage Protection	31V ±0.5V
Over-voltage Recovery	29V ±0.5V
Cooling Method	Smart Fan
Operating Temperature	-10℃ ~ 50℃
Product Dimensions	(315.75±1) * (178±1) * (92.2±1) mm
Warranty	2 Years
Packaging	Carton Packaging
