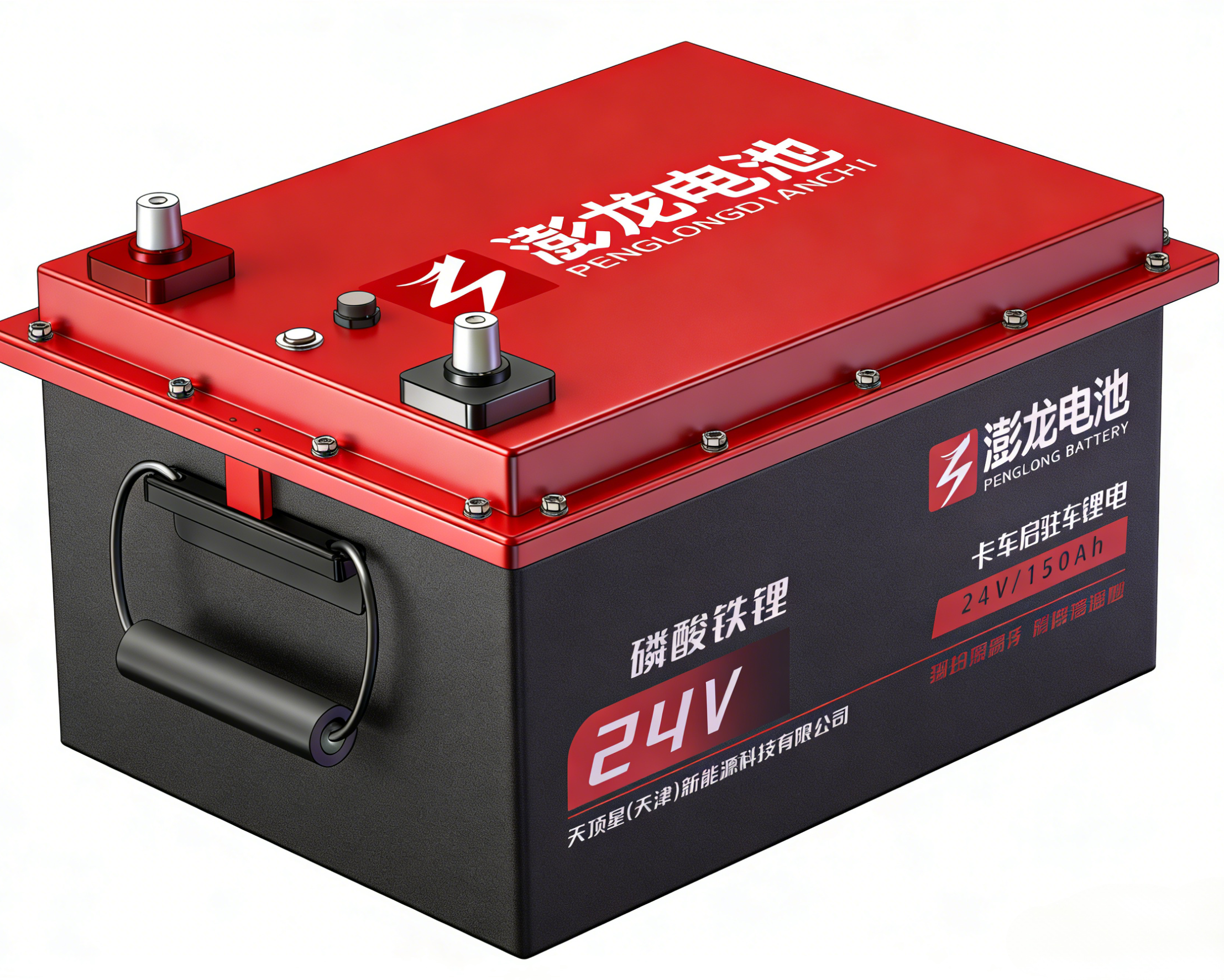

PL-H2 24V 150Ah Lithium-Ion Battery for Truck Start-Stop

Parameter	Technical Specifications
Nominal Voltage	25.6V
Rated Capacity	150 Ah
Factory Open-Circuit Voltage	26.4V
Battery Internal Resistance	1.6mΩ ≤ R ≤ 2.4mΩ
Maximum Continuous Charge Current	100A
Maximum Continuous Discharge Current	100A
Operating Voltage Range	16V ~ 29.2V
Maximum Cranking Current	1500A
Operating Temperature Range	Charge: 0℃ ~ 45℃
Operating Temperature Range	Discharge: -40℃ ~ 60℃
Transportation & Storage Temperature (Battery at 30% or 50% SOC)	Within 1 Month: -30℃ ~ 45℃
	Within 6 Months: -20℃ ~ 35℃
Ambient Humidity	≤85% RH, Non-condensing
Protection Rating (Including Base and Top Cover)	IP67
Cooling Method	Natural Cooling
Product Weight	35 ± 1 kg
Dimensions	L400±1 * W309.6±1 * H205.5±1 (mm)
Communication	4G
