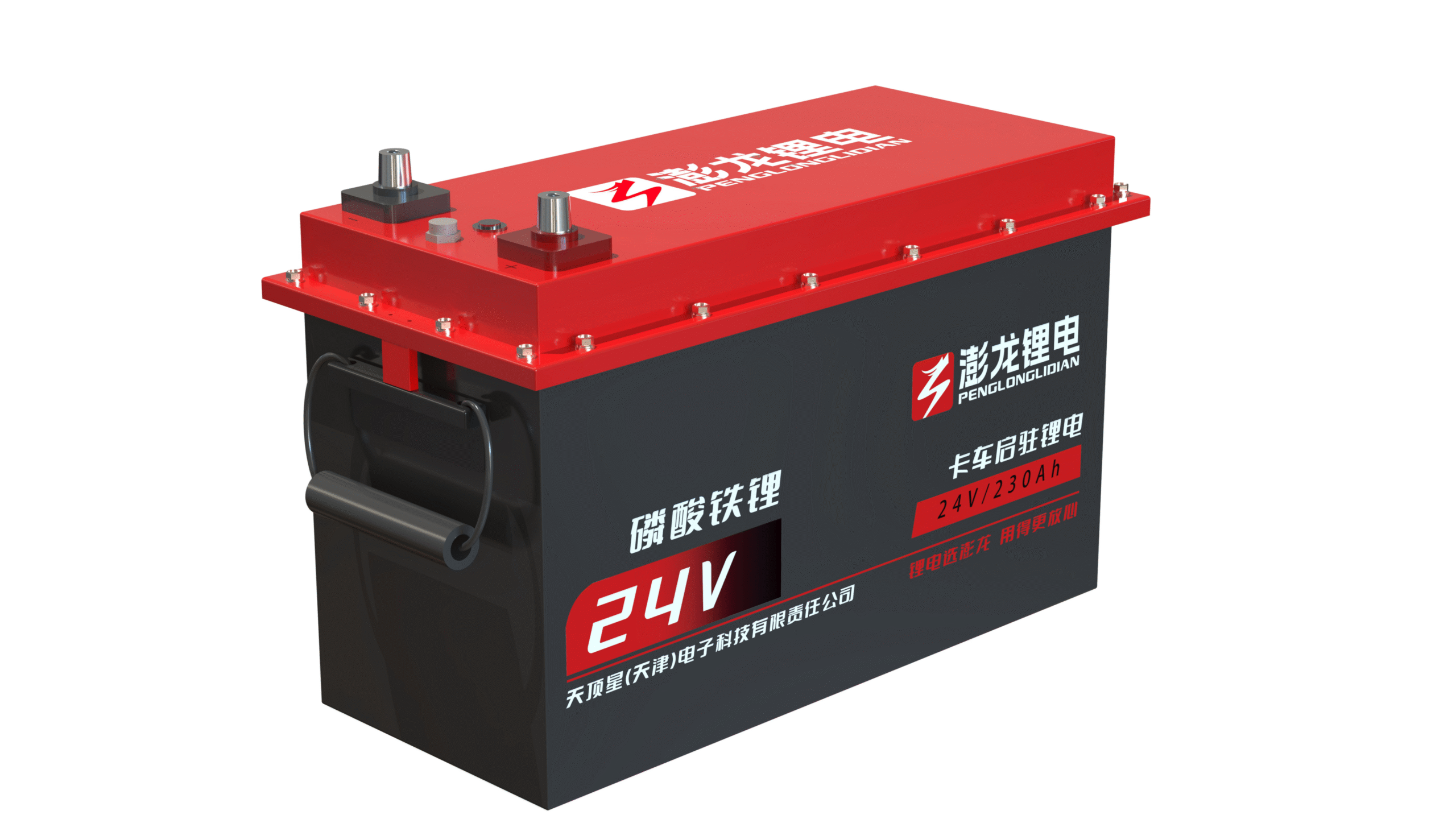

PL-S3 24V 230Ah Lithium-Ion Battery for Truck Start-Stop & APU

Parameter	Technical Specifications
Nominal Voltage	25.6V
Rated Capacity	230 Ah
Factory Open-Circuit Voltage	26.4V
Battery Internal Resistance	4 mΩ
Maximum Continuous Charge Current	100A
Maximum Continuous Discharge Current	100A
Operating Voltage Range	24.4V ~ 28.8V
Maximum Cranking Current	2400A
Operating Temperature Range	Charge (with heating): -30℃ ~ 60℃
Operating Temperature Range	Discharge (with heating): -30℃ ~ 60℃
Transportation & Storage Temperature (Battery at 30% or 50% SOC)	Within 1 Month: -20℃ ~ 45℃
	Within 6 Months: 0℃ ~ 35℃
Ambient Humidity	≤85% RH, Non-condensing
Protection Rating (Including Base and Top Cover)	IP67
Cooling Method	Natural Cooling
Product Weight	55 ± 1 kg
Dimensions	L479.5±1mm * W224.5±1mm * H285±1mm
Communication	4G
